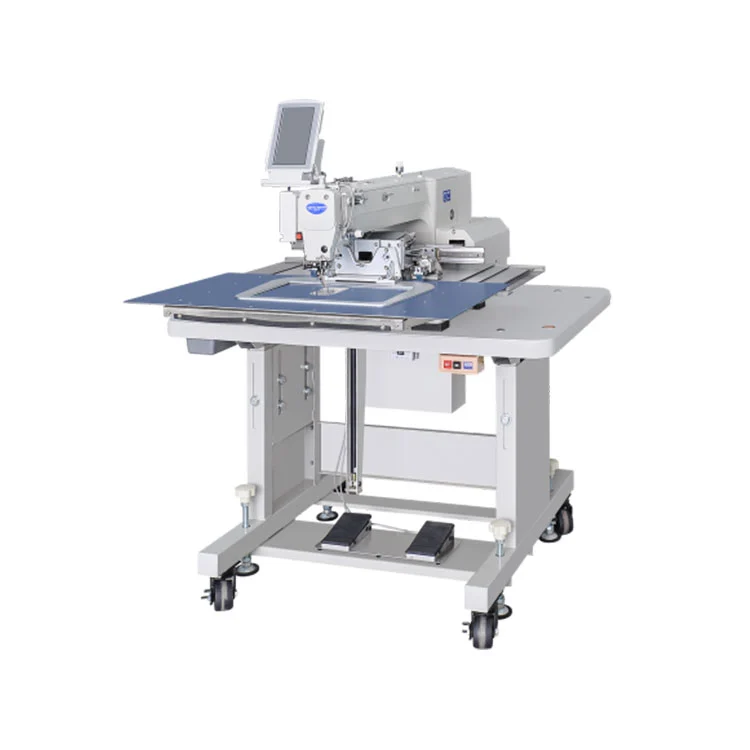

The core component of our Leather Sewing Equipment is the semi-rotary hook. Combined with our powerful drive system, it ensures stable stitching and effectively prevents brittle or stiff stitches when sewing thick, heavy materials such as multiple layers of leather or canvas.
Sanyou offers a variety of operating systems for you to choose from, which can be customized according to your factory workers' needs to achieve the best user experience.
This sewing equipment features a clear interface that makes pattern selection and stitch length adjustment incredibly simple. We offer precise adjustment of stitch lengths from 0.05 mm to 12.7 mm, allowing you to create even the finest stitches you desire.
Our leather sewing equipment uses a stepper motor to control the center presser foot and a pneumatic cylinder to control the outer presser foot.
This design allows for super-precise presser foot movement and stable positioning, effectively preventing material shifting and deviation when sewing thick materials at high speed, ensuring your products are perfectly aligned.
We know that the process requirements of different products are definitely different, so you can choose various functions according to the needs of your product.
| Standard Specifications | |||
| Model | 3020 | 3525 | |
| Sewing Range | 300MM*200MM | 350MM*250MM | |
| Stitch Type | Single-needle lockstitch | ||
| Stitch Pitch | 0.05-12.7mm | ||
| Hook Type | Semi-rotating double-hook | ||
| Center Presser Foot Lift | Stepper motor | ||
| Outer Presser Foot Lift | Pneumatic cylinder | ||
| Thread Trimmer | Standard flat-blade thread trimmer | ||
| Thread Wiper | Standard | ||
| Quick Die Change Clamp | Standard | ||
| Power Supply | Standard | ||
| Optional Features | |||
| Standard Specifications | System optional | ||
| 1 | Automatic start clamp | 1 | Button-operated |
| 2 | Sliding clamp | 2 | Horizontal screen |
| 3 | Flip presser foot | 3 | Portrait screen |
| 4 | Sewing head start switch | 4 | H-shaped |
| 5 | Thread breakage detection | ||
| 6 | Needle cooling | ||
| 7 | Secondary thread tensioner | ||
| 8 | Bowl-shaped auxiliary presser foot | ||
| 9 | Barcode recognition/RFID (available on portrait models) | ||
| 10 | Electronic thread clamp (available on portrait models) | ||
| 11 | Network big data function (available on portrait models) | ||
